steam room

Panacea 1709 t

£17,918

Please note: The steam generator and control panel are required for operation and are sold separately.

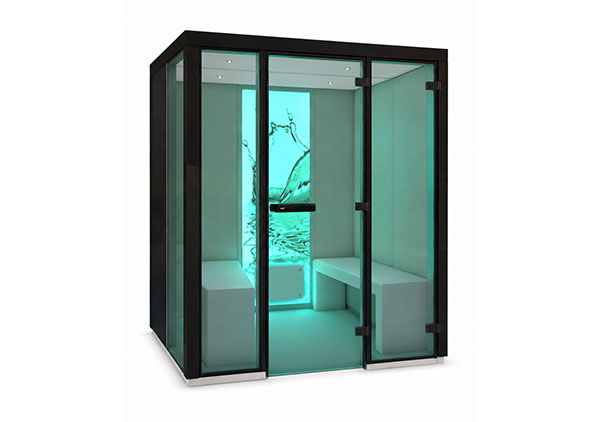

The Tylö Panacea 1709 t brings the distinctive Panacea steam-room design into a much narrower footprint, making it particularly well suited to bathrooms and wellness spaces where floor area is limited.

At just 92.5 cm deep, the cabin provides two individual Corian seats positioned at opposite ends of the room, allowing two people to enjoy the steam experience without requiring the space of a larger bench layout.

Opaque pale glass, smoke-coloured glass and slim dark profiles give the enclosure a clean, architectural appearance, while a mood-lit steam section introduces soft illumination from within the cabin.

The layout can also be mirrored during installation, allowing the door and steam section to be configured to suit the surrounding room.

Capacity

2 Adults

Dimensions

172.5 x 92.5 x 209 cm

Construction

Opaque and smoke-coloured safety glass with dark profiles

Heating

Steam Generator

Enquire Now

Book a Showroom Visit

Materials & Construction

Compact Without Feeling Compromised

The Panacea 1709 t is designed around a long, narrow footprint, measuring 172.5 cm wide but only 92.5 cm deep. This makes it particularly useful where a conventional square steam room would take up too much floor space.

Two individual Corian seats, each measuring approximately 66 x 31 cm, are positioned at opposite ends of the cabin. Rather than trying to squeeze a full-length bench into the narrow enclosure, the layout gives each bather a clearly defined seating position.

The enclosure combines opaque pale glass with smoke-coloured glass sections, framed by dark profiles. A dedicated mood-lit steam section forms part of the rear wall, introducing both the steam outlet and ambient lighting into the cabin.

The glass door can be configured with either left- or right-hand hinges, while the entire internal arrangement can be mirrored during installation. This gives greater flexibility when positioning the cabin within an existing bathroom or wellness space.

Steam Generator & Controls

This Panacea enclosure requires a separate Tylö steam generator and control panel. Both are selected to suit the room and the installation and are not included in the room price.

Steam generators
Steam Home is available in 3, 6 and 9 kW outputs for domestic installations. Steam Commercial is available in 9, 12 and 15 kW outputs for longer operating periods and more demanding installations.

Control panels
Pure provides straightforward control of temperature, lighting and operating time. Elite Cloud adds a touchscreen interface, scheduling and remote control through the Tylö WellAccess app.

The generator is installed outside the steam room and requires water, electricity and drainage. We will specify the appropriate generator and control panel as part of the quotation.

The Specs

Technical Specifications

Product	Tylö Panacea 1709 t
Capacity	2 adults
Width	172.5 cm
Depth	92.5 cm
Height	209 cm
Minimum Assembly Height	240 cm
Seating	Two individual Corian seats, approximately 66 x 31 cm each
Walls	Opaque pale glass and smoke-coloured glass sections
Door	Glass door with threshold
Door Configuration	Left- or right-hinged
Layout	Two mirrored installation configurations
Steam Section	Mood-lit steam outlet section
Ceiling	Prefabricated ceiling section with integrated lighting
Steam Generator	Required - sold separately
Control Panel	Required - sold separately
Installation	Indoor use only
Floor	Suitable finished wet-room floor with fall to drain
Underfloor Heating	Recommended
Optional Shower Tray	Supported by installation documentation

Warranty & Aftercare

The Panacea steam-room enclosure is supplied with a 2-year manufacturer’s warranty.

Separate warranty terms apply to the Tylö steam generator and control panel.

Warranty cover is subject to correct installation, use and maintenance in accordance with the manufacturer’s instructions.

Downloadable Resources

Why Buy From Hot Tubs Oxfordshire?

Award-Winning Expertise, Lifelong Support

Established wellness retailer
BISHTA member
Hundreds of verified customer reviews
Dedicated showroom experience
Installation guidance and aftercare support

Speak to an Expert

FAQs

How many people can use the Panacea 1709 t?

The cabin is best suited to two adults. It has two individual Corian seats positioned at opposite ends of the steam room.
How large is the Panacea 1709 t?

The cabin measures 172.5 cm wide, 92.5 cm deep and 209 cm high. Its narrow depth makes it particularly useful where floor space is limited.
Can the layout be reversed?

Yes. The installation documentation shows two mirrored configurations, allowing the arrangement to be adapted to suit the room.
Can the door be left- or right-hinged?

Yes. The glass door can be installed with either left- or right-hand hinges.
What are the seats made from?

The Panacea 1709 t has two individual Corian seats, each measuring approximately 66 x 31 cm.
What type of glass is used?

The cabin combines opaque pale glass and smoke-coloured glass sections, creating privacy while retaining the distinctive glazed appearance of the Panacea range.
Is the steam generator included?

No. The Panacea 1709 t requires a separate Tylö steam generator, which is selected to suit the installation and sold separately.
Is the control panel included?

No. A compatible Tylö control panel is also required and is selected separately.
Does the Panacea 1709 t include a shower?

A shower is not included as part of the standard cabin specification. The installation documentation does, however, allow for shower equipment and associated pipework to be incorporated during installation.
Does the cabin need a floor drain?

Yes. The cabin should be installed on a suitable finished wet-room floor with a fall towards a drain. The floor beneath the cabin frame itself must remain level.
Is underfloor heating required?

No, but Tylö recommends underfloor heating to reduce temperature differences within the steam room.
How much ceiling height is needed for installation?

The finished cabin is 209 cm high, while Tylö specifies a minimum height of 240 cm during assembly and installation.
Can Hot Tubs Oxfordshire specify the generator and controls?

Yes. We can specify the appropriate steam generator and control panel for the Panacea 1709 t and advise on the room preparation, drainage, electrical and installation requirements.
